Wheel Lock Scaffolding

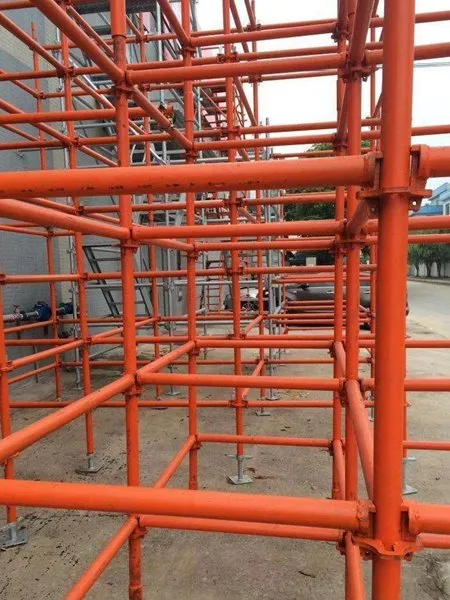

Wheel lock scaffolding uses a wheel disc joint for fast assembly. VANHN supplies painted system scaffolding for slab support and general construction.

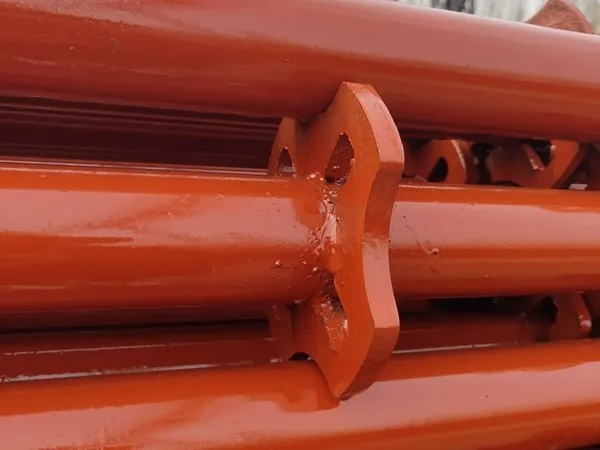

Wheel disc joint and painted finish
Wheel lock scaffolding is a painted system scaffolding with a wheel disc joint at each connection point. The joint locks standards and ledgers together without bolts. A hammer strike on the wedge pin secures the connection.
This system is used for slab support and other shoring work. The painted finish protects the steel surface and is available in red, orange, blue, or yellow. VANHN manufactures wheel lock scaffolding from Q355 steel with tube diameters of 48 mm or 60 mm.
Components and finish options
- Standards
- Vertical tubes with wheel discs. Available in 0.5 m to 3.0 m lengths, 48 mm or 60 mm diameter.
- Ledgers
- Horizontal tubes with wedge pins. Lengths from 0.3 m to 3.0 m. Connect to wheel discs without bolts.
- Diagonal braces
- Stabilize the structure. Sized to bay width and lift height.
- Base jacks
- Adjustable screw jacks for leveling. Threaded rod 38 mm or 48 mm, length 500 mm or 600 mm.
- U-head jacks
- Support formwork beams. Same thread and length options as base jacks.

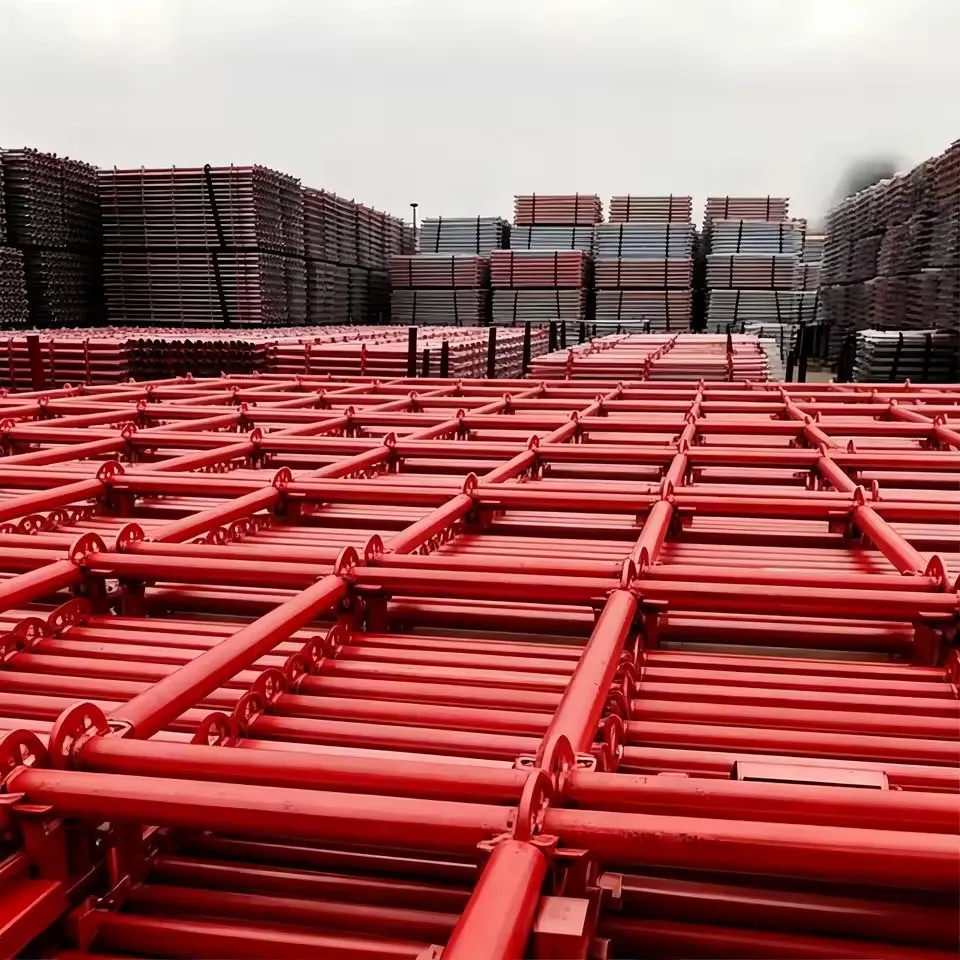

- Painted finish
- Powder coated or wet painted. Red, orange, blue, yellow. Hot-dip galvanized also available.
