Ringlock Scaffolding Parts
VANHN manufactures the full set of ringlock scaffolding parts in house, from rosettes and wedge pins to complete standards and ledgers.
Ringlock Scaffolding Components
- Standard
- Vertical tube with rosettes welded every 500 mm. Available in 0.5 to 3.0 m lengths.
- Ledger
- Horizontal tube with ledger ends at both ends. Standard lengths from 0.3 to 3.0 m.
- Diagonal brace
- Stabilizes the bay. Sized to match bay width and lift height.

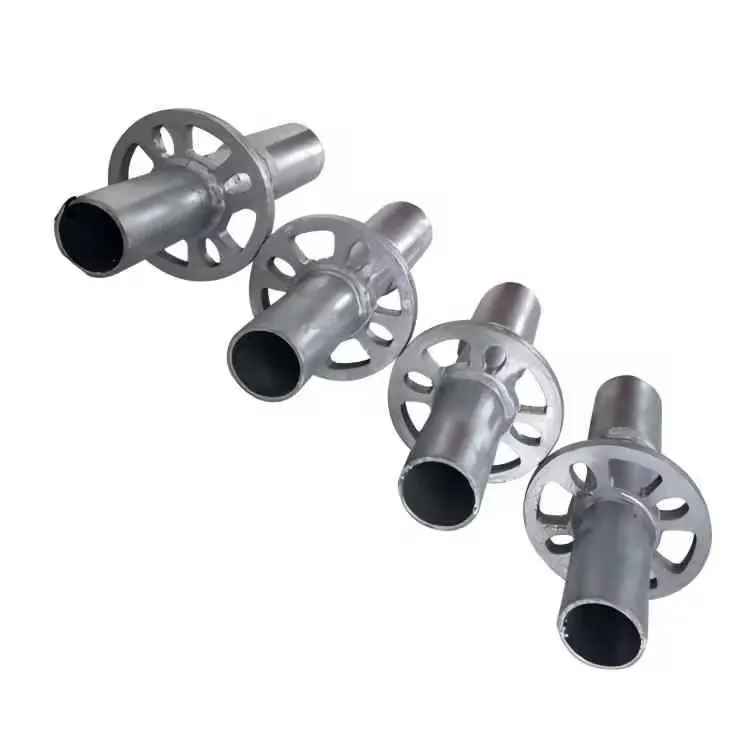

- Rosette
- 8-hole disc welded to the standard every 500 mm. Connects ledgers and braces with wedge pins. Some buyers call this the ringlock rosette.
- Ledger end
- Forged head welded to ledger ends. Slots over the rosette and locks with a wedge pin.

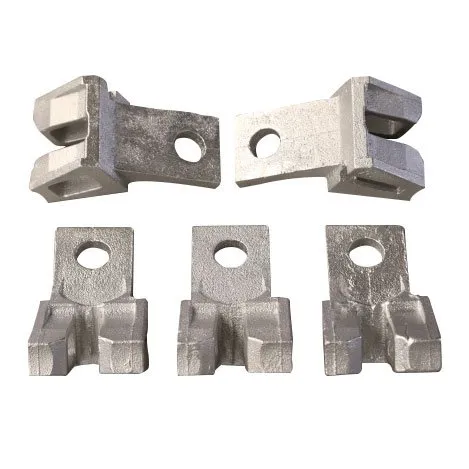

- Brace end
- Forged head for diagonal braces. Fits the rosette and accepts a wedge pin.
- Wedge pin
- Driven by hammer to lock ledger or brace ends to the rosette. No bolts required.
- Spigot
- Connects standards vertically. Inserted into the top of the lower standard.
- Base collar
- Welded to the bottom of the standard. Keeps the spigot centered and protects the tube end.
Ringlock standards (verticals)
| Length | Rosettes | Tube | Steel | Finish |
|---|---|---|---|---|
| 0.5 m | 1 | Ø48.3 or Ø60.3 mm | Q355 | Hot-dip galvanized |
| 1.0 m | 2 | Ø48.3 or Ø60.3 mm | Q355 | Hot-dip galvanized |
| 1.5 m | 3 | Ø48.3 or Ø60.3 mm | Q355 | Hot-dip galvanized |
| 2.0 m | 4 | Ø48.3 or Ø60.3 mm | Q355 | Hot-dip galvanized |
| 2.5 m | 5 | Ø48.3 or Ø60.3 mm | Q355 | Hot-dip galvanized |
| 3.0 m | 6 | Ø48.3 or Ø60.3 mm | Q355 | Hot-dip galvanized |
Nominal dimensions. Wall thickness 2.75 / 3.0 / 3.2 mm, customizable. Unit weights and load data are issued with the quotation.
Ringlock ledgers (horizontals)
| Bay length | Tube | Steel | End fitting |
|---|---|---|---|
| 0.3 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 0.6 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 0.9 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 1.2 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 1.5 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 1.8 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 2.1 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 2.4 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
| 3.0 m | Ø48.3 mm | Q235 | Cast ledger end with wedge pin |
Nominal dimensions. Wall thickness 2.75 / 3.0 / 3.2 mm, customizable. Unit weights and load data are issued with the quotation.
Get a quotation with matching dimension sheets
Send your bill of quantities or drawings. We reply within 24 hours.
- Made in our own plant, 100,000 m², founded 2016
- Hot-dip galvanized, painted or powder coated
- Reply within 24 hours
