Scaffolding China: Ringlock, Cuplock and Frame Systems from VANHN
VANHN manufactures ringlock, cuplock, kwikstage, frame and wheel-lock scaffolding in China. We supply hot-dip galvanized systems with Q355 steel and 800 kg load capacity.
- 2016
- Founded
- 400+
- Employees
- 100,000 m²
- Plant site
- 500,000 t
- Annual output
- 3,500
- Standards per 10 h line
Systems and components at a glance
| System | Joint | Main tube | Finish | Typical use |
|---|---|---|---|---|

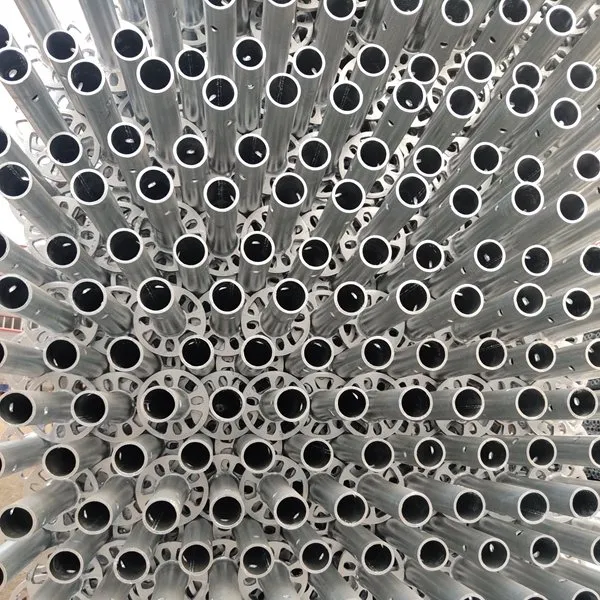

| Ringlock | 8-hole rosette every 500 mm, wedge pin | Ø48.3 / Ø60.3 mm, Q355 standards | Hot-dip galvanized | Heavy shoring, facade, stages |
| Cuplock | Top and bottom cup every 500 mm | Ø48.3 mm | Galvanized or painted | Slab formwork support, access |
| Kwikstage | Wedge and V-pressing | Ø48.3 mm | Galvanized or painted | Facade access |
| Frame | Pinned frames with cross braces | Welded frames | Galvanized or painted | Light access, shoring frames |
| Wheel-lock | Wheel disc with pin | Ø48 mm | Painted | Slab support |
| Steel props | Threaded collar, G-pin | 48-60 mm outer, 40-48 mm inner | Galvanized, painted, powder coated | Slab and beam support |

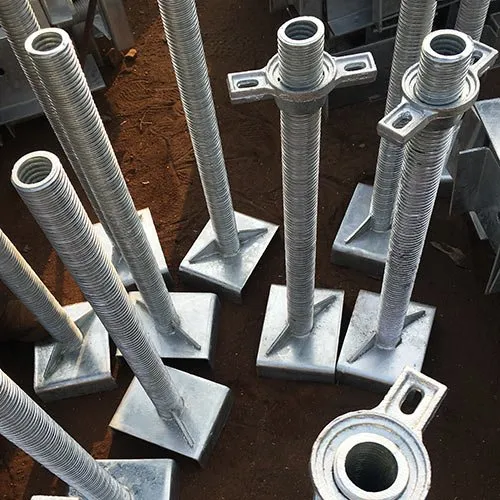

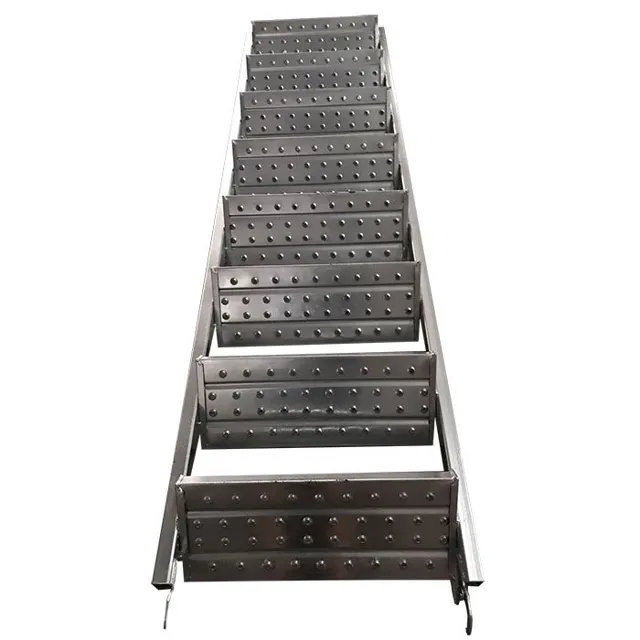

Couplers, base jacks, U-head jacks, steel planks and stairs fit across systems.
Selection variables that decide the system
- Load
- Heavier slab shoring needs 60 series standards. Lighter facade work can use 48 series tubes.
- Bay size
- Ledger lengths from 0.3 m to 3.0 m set the bay width and length. Choose to match decking and plank sizes.
- Finish

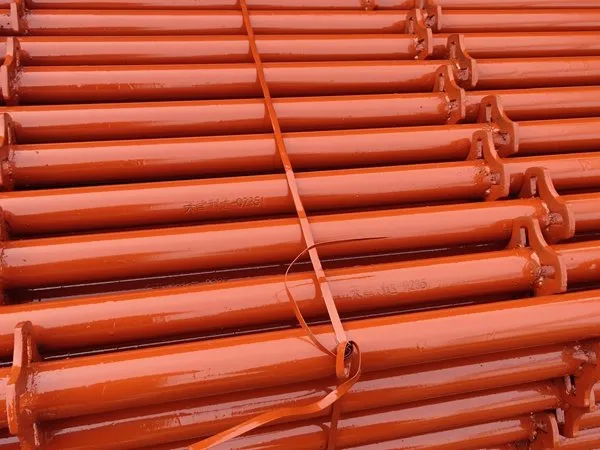

- Hot-dip galvanized is standard for long life. Painted or powder coated is available in red, orange, blue or yellow.
- Site labour

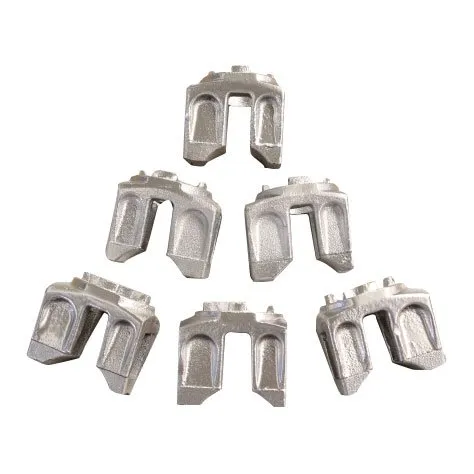

- Ringlock uses wedge pins and a hammer only. No bolts or loose fittings slow down erection.
- Region habits
- Cuplock remains common in some markets. Kwikstage and frame scaffolding suit other local practices.
Dimension data vs your project

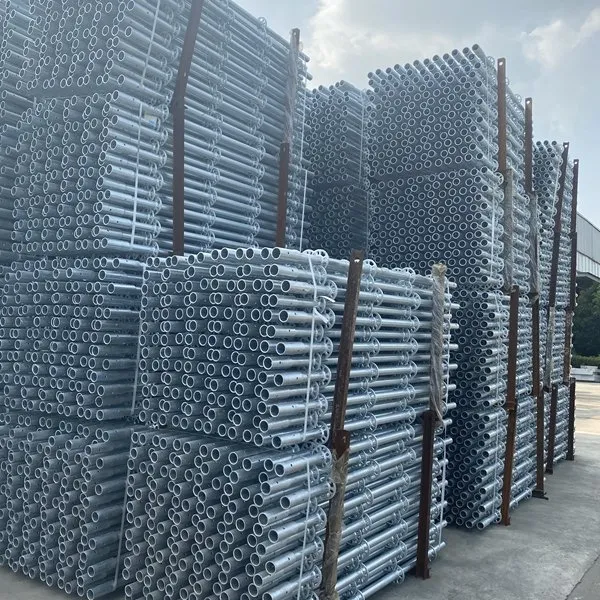

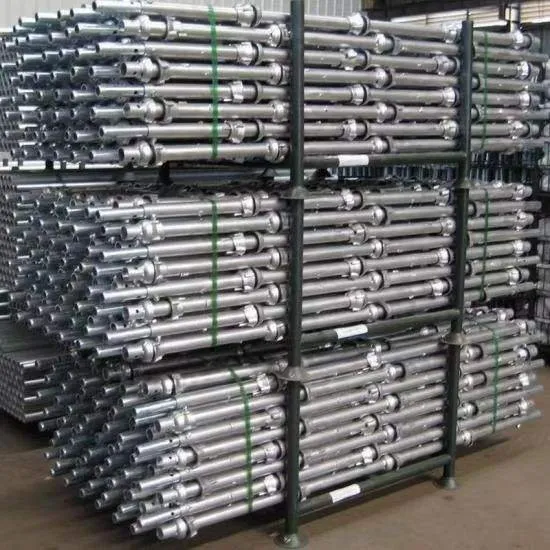

The tables on this site show nominal sizes for standards, ledgers, braces, planks and stairs. Ringlock standards run 0.5 m to 3.0 m. Ledgers run 0.3 m to 3.0 m. Cuplock standards run 0.5 m to 3.0 m with ledgers 0.6 m to 2.5 m.
Final dimensions are confirmed with the quotation. Bay layout, lift heights and brace lengths depend on your drawings and local loading rules. We provide a 3D scheme design before you order.
Why the numbers hold
We run our own welding lines. One standards line makes 3,500 pieces per 10 hours. A standard welding machine uses 13 welding power sources at the same time.

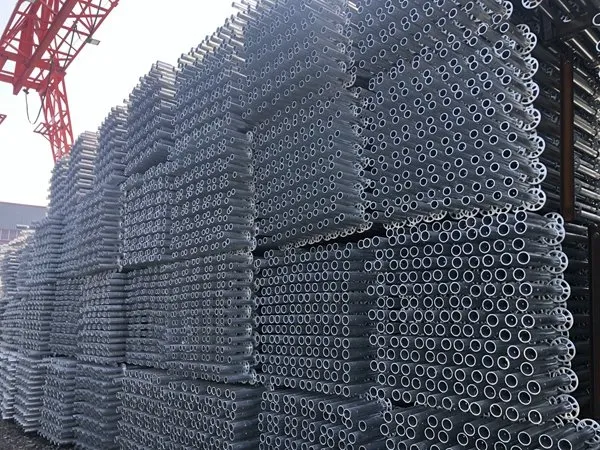

Standards use Q355 steel. Ledgers, braces and planks use Q235. Hot-dip galvanized components have a service life of 15 years or more. Wall thickness options are 2.75 mm, 3.0 mm and 3.2 mm.
Get a quotation with matching dimension sheets
Send your bill of quantities or drawings. We reply within 24 hours.
- Made in our own plant, 100,000 m², founded 2016
- Hot-dip galvanized, painted or powder coated
- Reply within 24 hours
